SECURITY GATE
Ensuring Strong Security for Outdoor Entrances
Our unique outdoor-compatible high-flap-panel gate boasts waterproof and dustproof capabilities, making it suitable for installation in various environments, both indoors and outdoors. The only one outdoor-compatible high-flap gate elevates the security of the perimeter around facilities to the next level.
MAIN FEATURE
High Security with A Compact Design
Balancing a high-flap-panel with a height of 1,600mm and a compact design with a depth of 1,300mm, it achieves robust security regardless of the installation location.

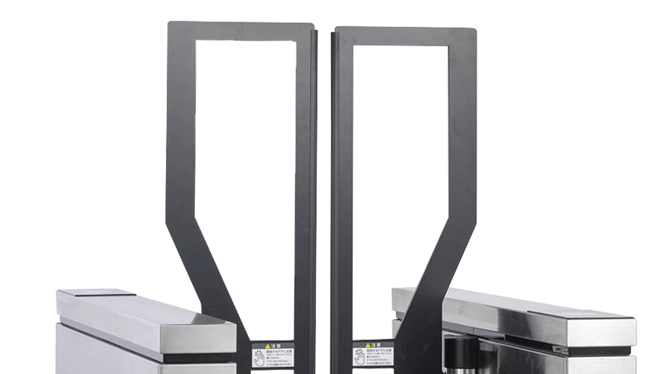

Flap Made of High-quality Aluminum Alloy with Excellent Safety and Weather Resistance.
The flap-panel is constructed using lightweight aluminum material, ensuring superior safety and weather resistance. The design prioritizes security, making it difficult to open even when the flap is firmly pushed during closing.
Expanding Potential for Outdoor Installation
We have conducted performance confirmation according to the JIS standard, achieving IP55 (waterproof and dustproof) certification. With excellent waterproof and dustproof capabilities, it enables outdoor installation of the gate.
SPECIFICATION
Selectable Flap-panel Height and Aisle Width

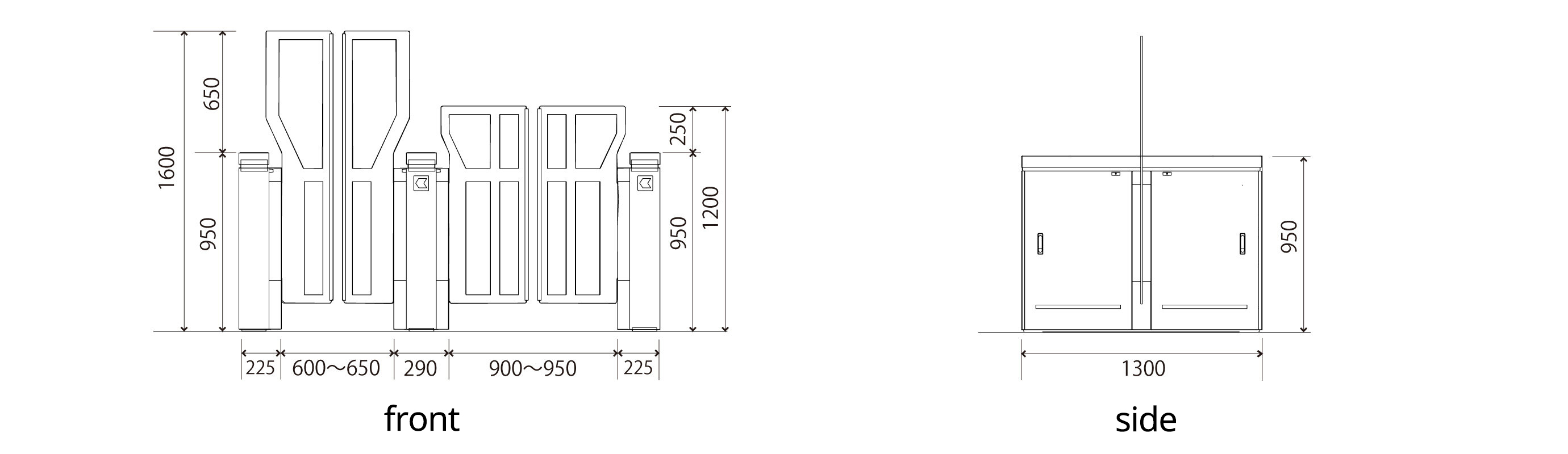

The floor height of the aluminum flap-panel can be selected from two options: a security-focused 1,600mm and an open-feel 1,200mm. The passage width is customizable, with a standard aisle (width: 600-650mm) and a wide aisle (width: 900-950mm) suitable for wheelchair and cart access, allowing for flexible layout configurations.
Access Indicator
The gate status, including permission, prohibition of aisle, and error occurrences, is indicated by two-color LED lamps in blue and red.
Heater Unit and Fan Unit (Option)
A heater that operates in low temperatures and a cooling fan that functions in high temperatures. This is essential when installing in outdoor environments with significant temperature fluctuations.
LAYOUT
Versatile Layout Options
A variety of layouts can be achieved by combining standard aisles with wide aisles and choosing different flap heights. This allows for customization based on the installation location and specific requirements.
